Product Details - features, specs, options, etc.

Tapper BT-CAS

Product
Catalogue

download

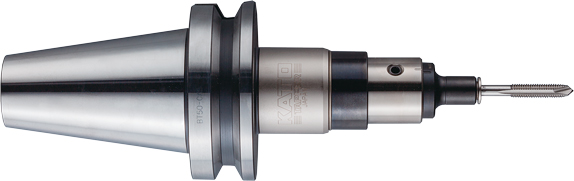

Model BT-CAS
youtube

〈Features〉

◎ With a thread depth control mechanism (constant depth)
● Tension and Compression
● Almighty Tapper (independent of machine tools or work materials)

〈Functions〉

Compression
Tension
Depth Control

Combination Chart

Matching Collets
CAS 412TCA 412
CAS1022TCA1022
Accessories
Clamping-screws
※ Also selling
Options
Model TCA collets
※ Not included. Sold separately.
BT-CAS

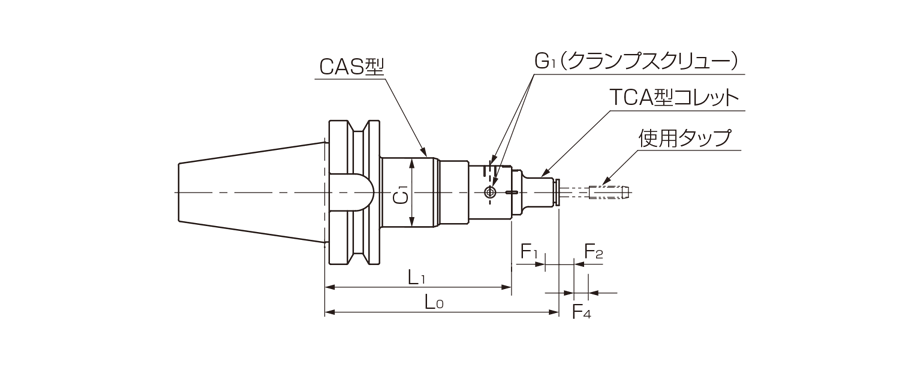

Model BT-CAS
Model
L0※
[mm]
L1
[mm]
C1
[mm]
F1※
[mm]
F2※
[mm]
F4※
[mm]
G1
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
BT40-CAS 412
163 130 48 3 ( 5) ( 8) M8 P1.0 M 4~M12 1.83 72,000
BT40-CAS1022
210 155 66 5 ( 6) (10) M10 P1.0 M10~M24 3.17 83,000
BT50-CAS 412
163 130 48 3 ( 5) ( 8) M8 P1.0 M 4~M12 4.31 85,000 Download
BT50-CAS1022
210 155 66 5 ( 6) (10) M10 P1.0 M10~M24 5.56 98,000 Download

※ Please contact us for the availability of models marked with ★.

※ F1: Compression, F2: Tension, F4: Back Tension

※ F2 and F4 are only for reference.

※ L0 should only be considered for Model TCA-S. When using other models, Lo should be calculated as L1+H1.
