Tapper BT-ECP

Product
Catalogue

download
Model BT-ECP
youtube

〈Features〉

◎ Synchro error compensation on tension only
◎ Slim design
● To prevent shallow thread depth by shrinkage, a compression function is omitted.
● It can be replaced with Model SA-Ⅲ without changing the program because the length does not change if using a TCA-S Collet.
● Tension may prevent rough thread surface of hard-to-cut materials.

〈Functions〉

Tension

Combination Chart

Matching Collets
ECP 412TCA 412
ECP1022TCA1022
Accessories
Clamping-screws
※ Also selling
Options
Model TCA collets
※ Not included. Sold separately.
BT-ECP

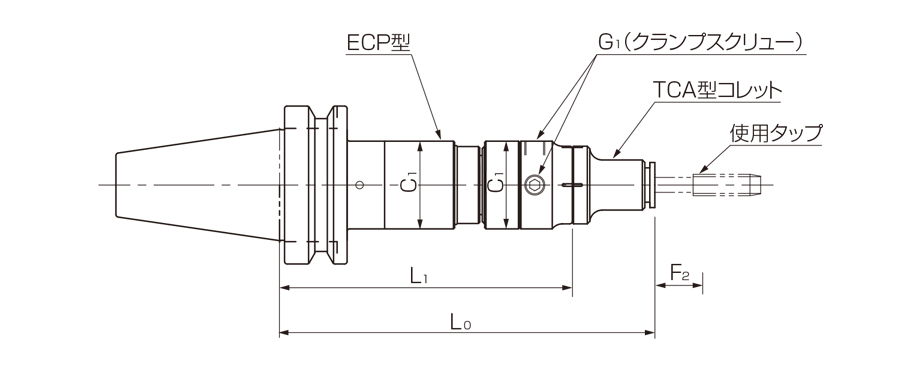

Model BT-ECP
Model
L0※
[mm]
L1
[mm]
C1
[mm]
F2※
[mm]
G1
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
BT30-ECP 412
150 117 35 10 M 8 P1.0 M 4~M12 0.91 31,000
  BT40-ECP 412
1.45 Download
  BT40-ECP1022
195 140 50 15 M10 P1.0 M10~M24 2.06 37,000 Download
  BT50-ECP 412
150 117 35 10 M 8 P1.0 M 4~M12 4.00 Download
  BT50-ECP1022
195 140 50 15 M10 P1.0 M10~M24 4.52 43,000 Download

※ Please contact us for the availability of models marked with ★.

※ F2: Tension

※ L0 should only be considered for Model TCA-S. When using other models, L0 should be calculated as L1+H1.
