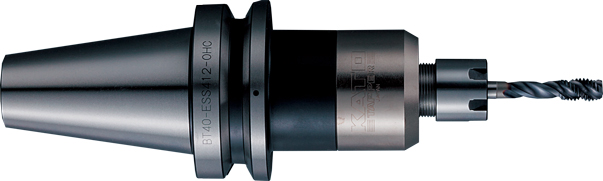

Tapper BT-ESS-OHC
Model BT-ESS-OHC

〈Features〉

◎Only for CNC machines with a synchro function
◎Micro-floating Tapper for Synchro Tapping
◎Also suits carbide taps.
◎For high speed tapping
◎With an internal coolant supply through the center of the spindle
    (Coolant pressure is up to 7MPa)
    ※ Please use a tap with an oil hole.
◎Coolant outlets passing by tap shank is achieved when used with AR-GH-C collets

〈Functions〉

Coolant Trough
Micro-float

Combination Chart

Matching Collets
ESS1022-OHCAR32-GH
ESS 412-OHCAR16-GB(M4)
AR16-GH(M5~)
Accessories
Nut
※ Also selling.
Options
Model AR collets
Spanner
※ Not included. Sold separately.

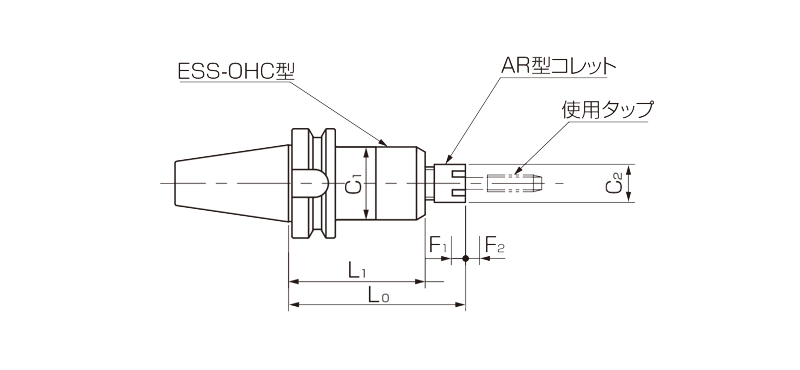

BT-ESS-OHC
Model BT-ESS-OHC
Model
L0
[mm]
L1
[mm]
C1
[mm]
C2
[mm]
F1
[mm]
F2
[mm]
Capacity Spanner
Weight
[kg]
List Price
[JPY]
DXF
  BT30-ESS 412-OHC
87 63.8 42 22 0.5 0.5 M4~M12 AE16M 0.7 45,000 Download
  BT40-ESS 412-OHC
102 78.8 1.5 Download
BT40-ESS 1022-OHC
160 126.9 66 50 M10~M22 FK7 3.5 52,000 Download
  BT50-ESS 412-OHC
132 108.8 42 22 M4~M12 AE16M 4.2 Download
  BT50-ESS 1022-OHC
160 126.9 66 50 M10~M22 FK7 5.6 57,000 Download

※ Please contact us for the availability of models marked with ★.

※ F1: Compression, F2: Tension
