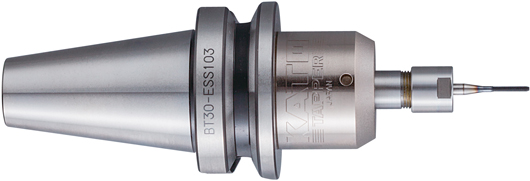

Tapper BT-ESS
Model BT-ESS

〈Features〉

◎Only for CNC machines with a synchro function
◎Micro-floating Tapper for Synchro Tapping
◎Also suits carbide taps.
◎For high speed tapping
◎Also for small tap sizes (eg. M1 to M3)

〈Functions〉

Micro-float

Combination Chart

Matching Collets
ESS103AR 8-AA
Accessories
Nut
※ Also selling.
Options
Model AR collets
Spanner
※ Not included. Sold separately.
BT-ESS

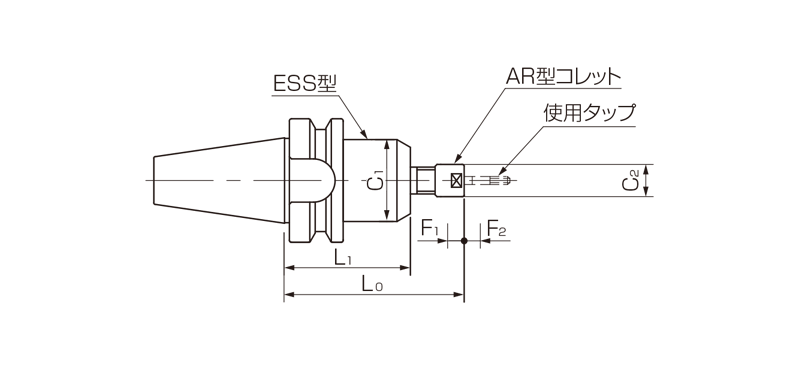

Model BT-ESS
Model
L0
[mm]
L1
[mm]
C1
[mm]
C2
[mm]
F1
[mm]
F2
[mm]
Capacity Spanner
Weight
[kg]
List Price
[JPY]
DXF
BT30-ESS 103 65 47 30.5 12 0.5 0.5 M1~M3 SP11 0.55 39,000 Download
BT40-ESS 103 75 57 1.18 39,000 Download
BT50-ESS 103 137 117 4.15 45,000 Download

※ F1: Compression, F2: Tension
