Tapper BT-SA-ⅡS

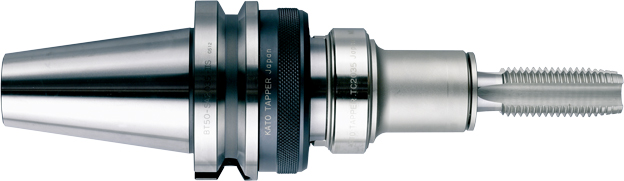

Model BT-SA-ⅡS

〈Features〉

◎The shortest design among the tappers for Machining Centers
●The short design is suitable for the process in limited space such as 5-face Machining Centers or turning centers.
●Synchro error compensation on tension and compression

〈Functions〉

Compression
Tension

Combination Chart

Matching Collets
SA 412-IISTC 412-MO
SA1022-IISTC1022-MO
SA2035-IISTC2035-MO
Options
Model TC-MO collets
※ Not included. Sold separately.
※ Model TC collets also can be used.
BT-SA-ⅡS
Model BT-SA-ⅡS
fig Model
L0
[mm]
L1
[mm]
C1
[mm]
F1※
[mm]
F2※
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
1 BT50-SA 412-ⅡS 84 40.5 33 6 8 M 3~M16 3.4 75,000 Download
BT50-SA1022-ⅡS 123 58.0 50 8 M 8~M27 3.5 86,000 Download
2 BT50-SA2035-ⅡS 160 75.0 92 M18~M38 4.4 111,000 Download

※ F1: Compression, F2: Tension
