Product Details - features, specs, options, etc.

Tapper BT-SA-Ⅲ-OHC

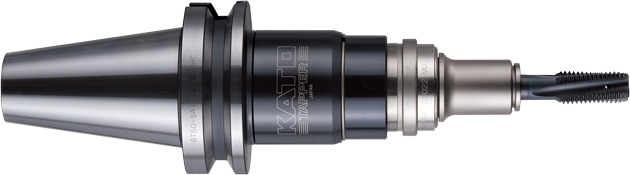

Model BT-SA-Ⅲ-OHC
youtube

〈Features〉

◎ With a thread depth control mechanism (constant depth)
◎ With an internal coolant supply through the center of the spindle
    ※ Please use a tap with an oil hole.
● Coolant pressure is up to 2MPa with TC-MO collets.
● TC-MO-MIST collets in mist specifications are also available.
● Model SA-Ⅲ for right-hand threading is standard.
    Model SA-Ⅲ for left-hand threading is also available.

〈Functions〉

Compression
Tension
Depth Control
Coolant Trough

Combination Chart

Matching Collets
SA3050-Ⅲ-OHCTC3050-MO
SA2035-Ⅲ-OHCTC2035-MO
SA1022-Ⅲ-OHCTC1022-MO
SA 412-Ⅲ-OHCTC 412-MO
Options
Model TC-MO collets
※ Not included. Sold separately.
※ Model TC collets can't be used.
BT-SA-Ⅲ-OHC

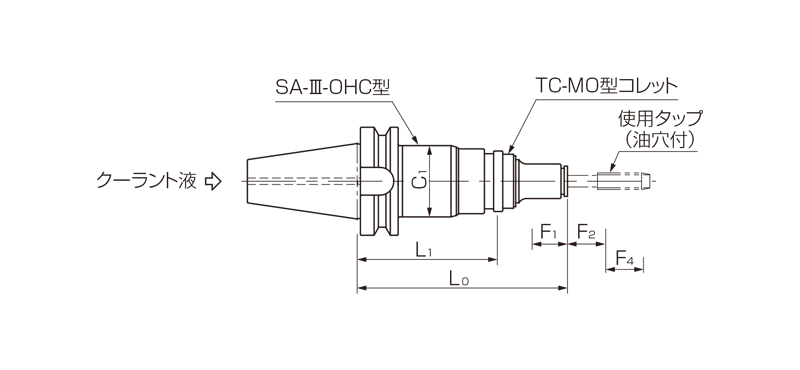

Model BT-SA-Ⅲ-OHC
Model
L0
[mm]
L1
[mm]
C1
[mm]
F1※
[mm]
F2※
[mm]
F4※
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
BT40-SA 412-Ⅲ-OHC
165 121.5 48 3 ( 5) ( 8) M 3~M16   2.14 105,000 Download
BT40-SA1022-Ⅲ-OHC
225 160.0 66 5 ( 6) (10) M 8~M27   3.44 Download
BT50-SA 412-Ⅲ-OHC
180 136.5 48 3 ( 5) ( 8) M 3~M16   4.41 Download
  BT50-SA1022-Ⅲ-OHC
195 130.0 66 5 ( 6) (18) M 8~M27   5.00 Download
  BT50-SA2035-Ⅲ-OHC
275 190.0 84 10 ( 7) (11) M18~M38   7.00 132,000 Download
BT50-SA3050-Ⅲ-OHC
345 245.0 100 ( 8) (14) M27~M56 11.30 182,000 Download

※ Please contact us for the availability of models marked with ★.

※ F1: Compression, F2: Tension, F4: Back Tension

※ F2 and F4 are only for reference.
