Product Details - features, specs, options, etc.

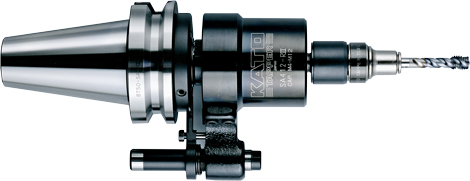

| Tapper | BT-SA-RⅡ | |
|
|
|
〈Features〉
◎ Tapper with self-reverse mechanism only for machining centers
◎ Extends the machine's life span and reduces the cycle time
● Efficient for tapping on machine tools with large spindle motors
● Stable thread depth
● Saves electricity because there is no need to reverse the spindle
● The NC program is simple because the tap exits by 1x speed.
● The stop block is necessary for Model SA-RⅡ
● Available for both right-hand and left-hand threading processes.
〈Functions〉
Combination Chart
| Matching Collets | |
|---|---|
| SA1022-RⅡ | TC1022-MO |
| SA 412-RⅡ | TC 412-MO |
| SA 206-RⅡ | TC 206-M |
| Options |
|---|
| Model TC-MO collets ※ Not included. Sold separately. ※ Model TC collets also can be used. |
| BT-SA-RⅡ |
|
| Model |
L0 [mm] |
L1 [mm] |
C1 [mm] |
C4 [mm] |
F1※ [mm] |
F2※ [mm] |
F3※ [mm] |
F4※ [mm] |
A [mm] |
Adjustable Range of H |
Capacity |
Weight [kg] |
List Price [JPY] |
DXF | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
180 | 148.0 | 56 | 66 | 4 | ( 4) | 1 | ( 5) | 65 | -20～28 | M 2～M 6 | 3.08 | 107,000 | Download | ||
|
210 | 166.5 | 72 | 80 | 3 | ( 5) | ( 6) | M 3～M12 | 4.17 | Download | ||||||
|
300 | 235.0 | 90 | 90 | ( 8) | ( 8) | -10～38 | M 8～M22 | 6.88 | 158,000 | Download | |||||
|
190 | 158.0 | 56 | 66 | 4 | ( 4) | ( 5) | 80 | M 2～M 6 | 5.90 | 109,000 | Download | ||||
|
220 | 176.5 | 72 | 80 | 3 | ( 5) | ( 6) | M 3～M12 | 7.02 | Download | ||||||
|
300 | 235.0 | 90 | 90 | ( 8) | ( 8) | M 8～M22 | 9.71 | 178,000 | Download |
※ Please contact us for the availability of models marked with ★.
※ F1: Compression, F2: Tension, F3: Neutral, F4:Back Tension
※ F2 and F4 are only for reference.
