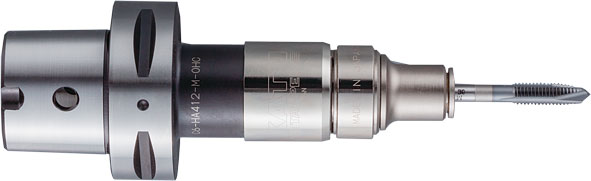

Tapper C-HA-M-OHC
Model C-HA-M-OHC
youtube

〈Features〉

◎ Only for CNC machines with a synchro function
◎ Micro-floating Tapper for Synchro Tapping
◎ With an internal coolant supply through the center of the spindle
    ※ Please use a tap with an oil hole.
◎ Quick-change tap collets
● Coolant pressure is up to 2MPa with TC-MO collets.
● Coolant pressure is up to 5MPa with TC-MO-SB collets.
● Model HA-M-OHC tappers can function in mist specifications only when used with Model TC-MO-MIST collets.

〈Functions〉

Coolant Trough
Micro-float

Combination Chart

Matching Collets
HA1022-M-OHCTC1022-MO
HA 412-M-OHCTC 412-MO
Options
Model TC-MO collets
※ Not included. Sold separately.
※ Model TC collets can't be used for synchro tapping because they're with a torque limiter.
C-HA-M-OHC
Model C-HA-M-OHC
Model
L0
[mm]
L1
[mm]
C1
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
C6-HA 412-M-OHC
120 76.5 35 M 3~M16 1.21 55,000 Download
C6-HA1022-M-OHC
165 100.0 50 M 8~M27 1.76 66,000 Download

※ Please contact us for the availability of models marked with ★.
