Product Details - features, specs, options, etc.
| Tapper | C-SKB | |
|
|
|
〈Features〉
◎ Only for CNC machines with a synchro function
◎ Rigid design for high speed tapping
◎ With an internal coolant supply through the center of the spindle
※ Please use a tap with an oil hole.
◎ Short & compact design
● No tension or compression
〈Functions〉
Combination Chart
| Matching Collets | |
|---|---|
| SKB1022 | TCA1022 |
| SKB 412 | TCA 412 |
| Accessories |
|---|
| Clamping-screws ※ Also selling |
| Options |
| Model TCA collets ※ Not included. Sold separately. |

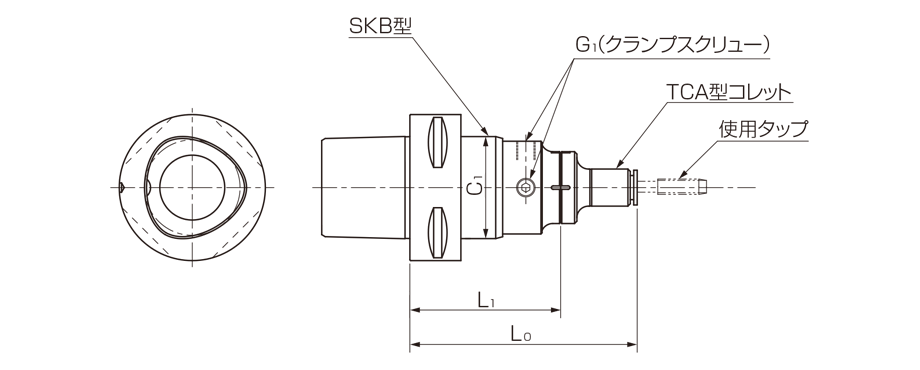

| C-SKB |
|
| Model |
L0※ [mm] |
L1 [mm] |
C1 [mm] |
G1 [mm] |
Capacity |
Weight [kg] |
List Price [JPY] |
DXF | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
98 | 65 | 44 | M 8 P1.0 | M 2～M12 | 1.23 | 45,000 | Download | ||
|
135 | 80 | 56 | M10 P1.0 | M10～M24 | 1.52 | 49,000 | Download |
※ Please contact us for the availability of models marked with ★. ※ L0 should only be considered for Model TCA-S. When using other models, L0 should be calculated as L1+H1.
