Product Details - features, specs, options, etc.

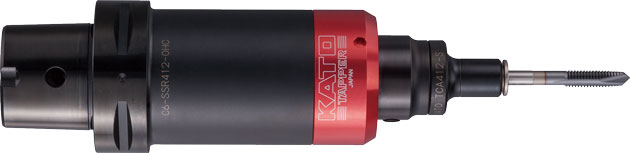

Tapper C-SSR-OHC
Model C-SSR-OHC

〈Features〉

◎ Only for CNC machines with a synchro function
◎ Micro-floating Tapper for Synchro Tapping
◎ Attachable collet "Model TCA" is also available for long types. (up to L size)
◎ With an internal coolant supply through the center of the spindle
    ※ Please use a tap with an oil hole.
◎ Quick-change of taps

〈Functions〉

Coolant Trough
Micro-float

Combination Chart

Matching Collets
SSR 412-OHCTCA 412-S
TCA 412-M
TCA 412-L
SSR1022-OHCTCA 1022-S
TCA 1022-M
TCA 1022-L
Accessories
Clamping-screws
※ Included. Also selling.
Options
Model TCA collets
※ Not included. Sold separately.

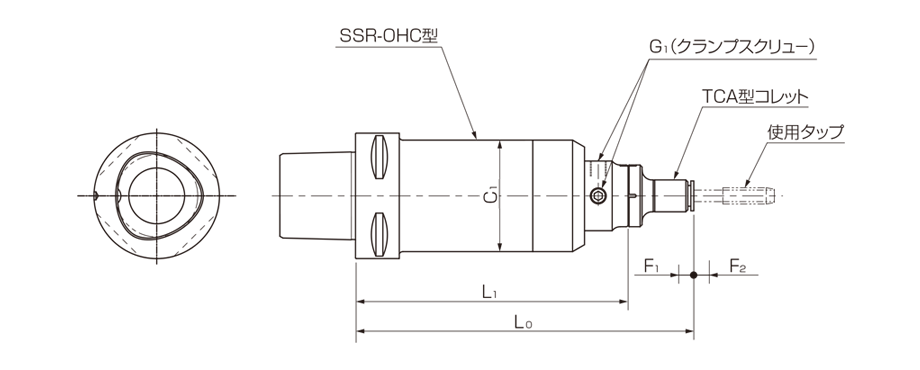

C-SSR-OHC
Model C-SSR-OHC
Model
L0※
[mm]
L1
[mm]
C1
[mm]
F1
[mm]
F2
[mm]
G1 Capacity
Weight
[kg]
List Price
[JPY]
DXF
C6-SSR 412-OHC
170 137 56 0.5 0.5 M 8 P1.0 M 4~M12 2.52 ¥66,000 Download
C6-SSR 1022-OHC
230 175 74 M10 P1.0 M10~M24 4.68 ¥77,000 Download

※ Please contact us for the availability of models marked with ★.
※ F1: Compression, F2: Tension
※ L0 should only be considered for Model TCA-S. When using other models, L0 should be calculated as L1 + H1.
