Tapper HSK-ESS-OHC
Model HSK-ESS-OHC

〈Features〉

◎ Only for CNC machines with a synchro function
◎ Micro-floating Tapper for Synchro Tapping
◎ Also suits carbide taps.
◎ For high speed tapping
◎ With an internal coolant supply through the center of the spindle
    (Coolant pressure is up to 7MPa)
    ※ Please use a tap with an oil hole.
◎ Coolant outlets passing by tap shank is achieved when used with AR-GH-C collets

〈Functions〉

Coolant Trough
Micro-float

Combination Chart

Matching Collets
ESS1022-OHCAR16-GB(M4)
AR16-GH(M5~)
ESS 412-OHCAR32-GH
Accessories
Nut
※ Included. Also selling.
Options
Model AR collets
Spanner
※ Not included. Sold separately.
HSK-ESS-OHC

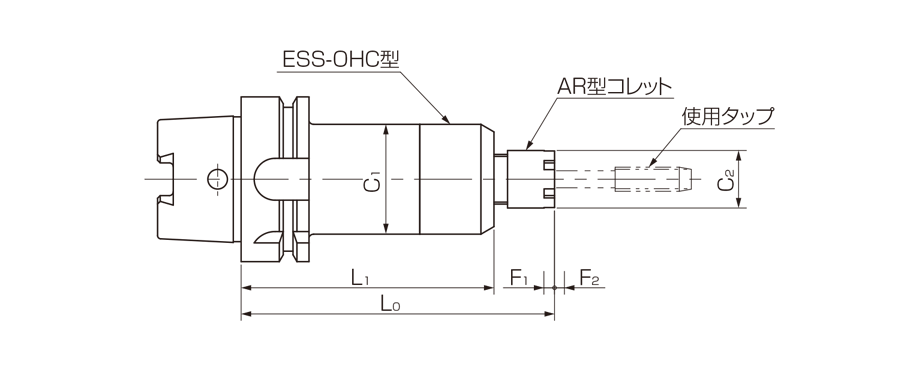

Model HSK-ESS-OHC
Model
L0
[mm]
L1
[mm]
C1
[mm]
C2
[mm]
F1
[mm]
F2
[mm]
Capacity Spanner
Weight
[kg]
List Price
[JPY]
DXF
HSK-A63-H-ESS 412-OHC
120 96.8 42 22 0.5 0.5 M4~M12 AE16M 1.57 55,000 Download
HSK-A63-H-ESS 1022-OHC
180 147.0 66 50 M10~M22 FK7 3.94 77,000 Download

※ Please contact us for the availability of models marked with ★.

※ HSK shank with holes for manual clamping is standard.

※ The coolant pipe is tiltable.

※ F1: Compression, F2: Tension
