Product Details - features, specs, options, etc.

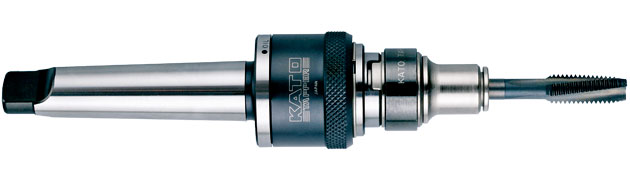

| Tapper | MT-SA-Ⅵ | |
|
|
|
〈Features〉
◎Designed for a wide range of machine tools ●Synchro error compensation on tension and compression ●Short design for limited space
〈Functions〉
Combination Chart
| Matching Collets | |
|---|---|
| SA1022-Ⅵ | TC1022 |
| SA 412-Ⅵ | TC412 |
| Options |
|---|
| Model TC collets ※ Not included. Sold separately. |

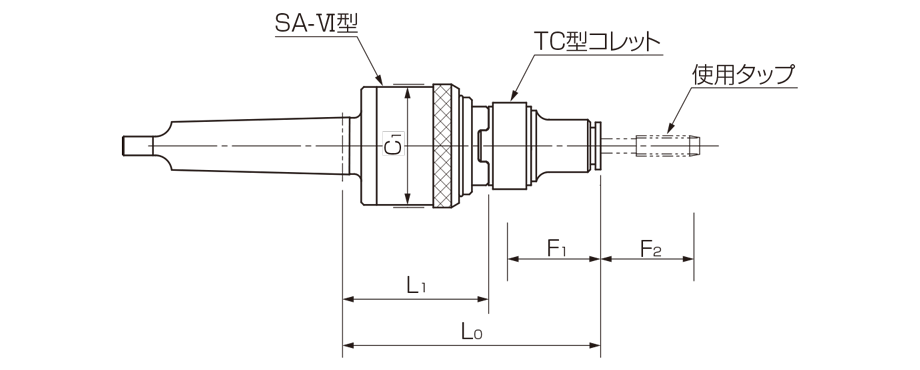

| MT-SA-Ⅵ |
|
| Model |
L0 [mm] |
L1 [mm] |
C1 [mm] |
F1※ [mm] |
F2※ [mm] |
Capacity |
Weight [kg] |
List Price [JPY] |
|---|---|---|---|---|---|---|---|---|
| MT2-SA 412-Ⅵ | 100.0 | 56.5 | 47 | 6 | 8 | M 3～M12 | 0.48 | 33,000 |
| MT3-SA 412-Ⅵ | M 3～M16 | 0.63 | ||||||
| MT3-SA1022-Ⅵ | 148.0 | 83.0 | 64 | 8 | 10 | M 8～M22 | 1.28 | 41,000 |
| MT4-SA1022-Ⅵ | 149.5 | 84.5 | M 8～M27 | 1.60 |
※ F1: Compression, F2: Tension
