Tapper MT/JT-RA

Product
Catalogue

download

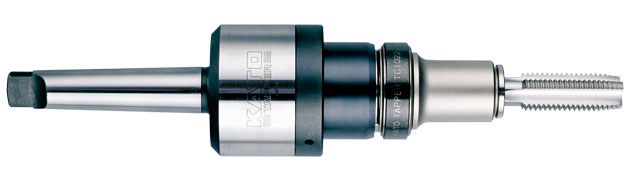

Model MT/JT-RA

〈Features〉

◎Radial floating tapper
●Designed for radial drilling machines / CNC drilling Machines
●Eccentricity compensation between a tap axis and a drill hole axis
Pre-Order Productions
  KTV2-RA412 for KIRA Corporation's CNC drilling machine
  BT71-RA412 for BROTHER Industries, Ltd.'s CNC drilling machine

〈Functions〉

Radial Float

Combination Chart

Matching Collets
RA 1022TC 1022
RA 412TC 412
Options
Model TC collets※ Not included. Sold separately.
MT/JT-RA
Model MT/JT-RA
fig. Model
L0
[mm]
L1
[mm]
C1
[mm]
F
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
1
JT6-RA 412
155 111.5 51 Radius 1.0 M 3~M  8 1.10   Download
2
MT2-RA 412
120 76.5   Radius 1.0 M 3~M 12 0.75 38,000 Download
MT3-RA 412
      Radius 1.0 M 3~M 16 0.90 Download
  MT3-RA1022
160 95.0 68 Radius 1.0 M 8~M 22 1.20 48,000 Download
  MT4-RA1022
  100.0   Radius 1.0 M 8~M 27 1.52 Download

※ Please contact us for the availability of models marked with ★.

※ F: Floating Radius
