Product Details - features, specs, options, etc.

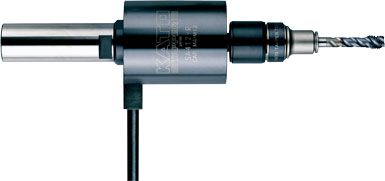

| Tapper | ST-SA-R | |
|
|
|
〈Features〉
◎ Tapper with self-reverse mechanism for general purpose machines
● Tension / compression, neutral and self-reverse mechanisms to ensure safety and cost saving
● Available for both right-hand and left-hand threading processes.
〈Functions〉
Combination Chart
| Matching Collets | |
|---|---|
| SA 206-R | TC 206 |
| SA 412-R | TC 412 |
| SA1022-R | TC1022 |
| Options |
|---|
| Model TC collets ※ Not included. Sold separately. |
| ST-SA-R |
|
| Model |
L0 [mm] |
L1 [mm] |
C1 [mm] |
F1※ [mm] |
F2※ [mm] |
F3※ [mm] |
F4※ [mm] |
Shank | Capacity |
Weight [kg] |
List Price [JPY] |
DXF | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
l2 |
d2 |
||||||||||||||
|
150 | 118.0 | 55 | 4 | ( 4) | 1 | ( 5) | 60 | 20 | M 2～M 6 | 1.31 | 104,000 | Download | ||
|
75 | 25 | 1.46 | Download | |||||||||||
|
180 | 136.5 | 69 | 3 | ( 5) | ( 6) | M 3～M12 | 2.41 | Download | ||||||
|
80 | 32 | 2.61 | Download | |||||||||||
|
220 | 195 | 90 | ( 8) | ( 8) | M 8～M22 | 5.61 | 129,000 | Download | ||||||
※ Please contact us for the availability of models marked with ★.
※ F1: Compression, F2: Tension, F3: Neutral, F4: Back Tension
※ F2 and F4 are only for reference.
