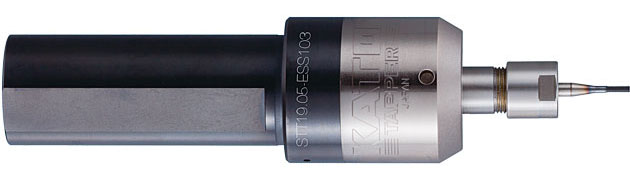

Tapper STT-ESS
Model STT-ESS

〈Features〉

◎Only for CNC machines with a synchro function
◎Micro-floating Tapper for Synchro Tapping
◎Also suits carbide taps.
◎For high speed tapping
◎Also for small tap sizes (eg. M1 to M3)

〈Functions〉

Micro-float

Combination Chart

Matching Collets
ESS103AR 8-AA
Accessories
Nut
※ Also selling.
Options
Model AR collets
Spanner
※ Not included. Sold separately.

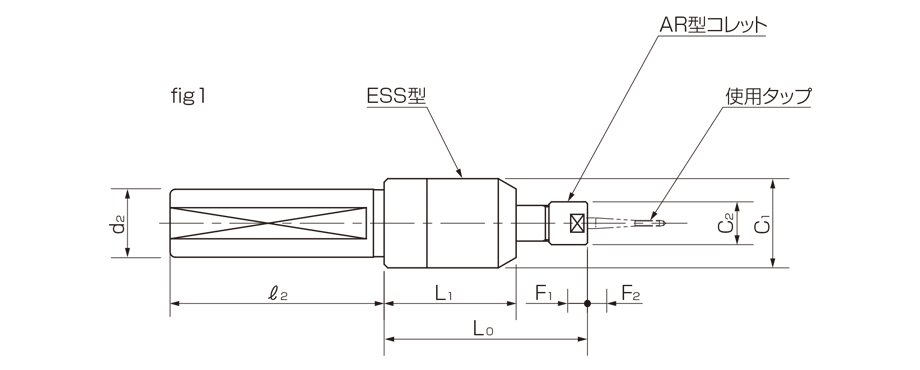

STT-ESS
Model STT-ESS
Model
L0
[mm]
L1
[mm]
C1
[mm]
C2
[mm]
F1
[mm]
F2
[mm]
Shank Capacity Spanner
Weight
[kg]
List Price
[JPY]
DXF
2 d2
STT32-ESS 412-OHC
57 37 25 12 0.4 0.4 60 19.05 M 1~M 3 SP11 0.36  39,000 Download
STT32-ESS 412-OHC
20 Download

※ Please contact us for the availability of models marked with ★.

※ F1: Compression, F2: Tension
