Tapper BT-HA-M-OHC

Product
Catalogue

download

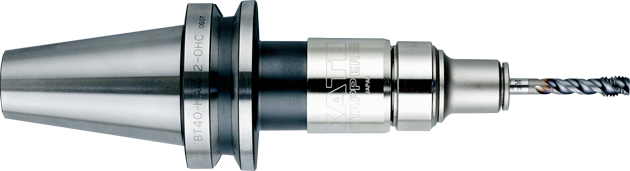

Model BT-HA-M-OHC
youtube

〈Features〉

◎ Only for CNC machines with a synchro function
◎ Micro-floating Tapper for Synchro Tapping
◎ With an internal coolant supply through the center of the spindle
    ※ Please use a tap with an oil hole.
◎ Quick-change tap collets
● Model HA-M-OHC tappers can function in mist specifications only when used with Model TC-MO-MIST collets.

〈Functions〉

Coolant Trough
Micro-float

Combination Chart

Matching Collets
HA 412-M-OHCTC 412-MO
HA1022-M-OHCTC1022-MO
HA2035-M-OHCTC2035-MO
HA3050-M-OHCTC3050-MO
Options
Model TC-MO collets
※ Not included. Sold separately.
※ Model TC collets can't be used for synchro tapping because they're with a torque limiter.

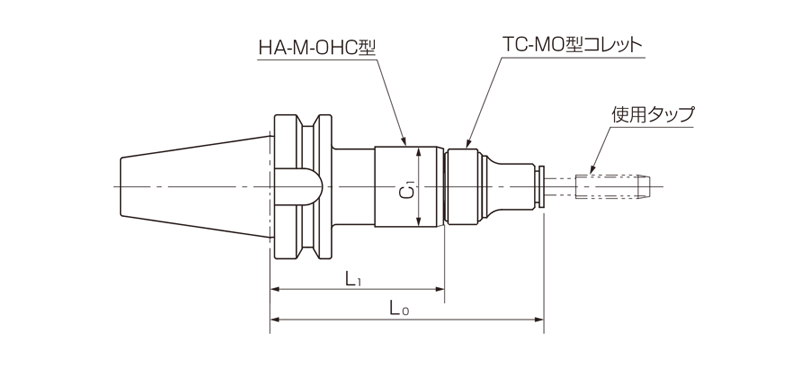

BT-HA-M-OHC
Model BT-HA-M-OHC
Model
L0
[mm]
L1
[mm]
C1
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
  BT30-HA 412-M-OHC
105 61.5 35 M 3~M16 0.53 33,000 Download
BT30-HA1022-M-OHC
150 85.0 50 M 8~M22 1.05   Download
  BT40-HA 412-M-OHC
120 76.5 35 M 3~M16 1.19 33,000 Download
  BT40-HA1022-M-OHC
150 85.0 50 M 8~M27 1.46 36,000 Download
BT40-HA2035-M-OHC
210 125.0 72 M18~M38 2.13 53,000 Download
  BT50-HA 412-M-OHC
135 91.5 35 M 3~M16 3.73 37,000 Download
  BT50-HA1022-M-OHC
165 100.0 50 M 8~M27 4.10 42,000 Download
  BT50-HA2035-M-OHC
210 125.0 72 M18~M38 4.92 58,000 Download
BT50-HA3050-M-OHC
255 155.0 92 M27~M56 6.90 86,000 Download

※ Please contact us for the availability of models marked with ★.
