Tapper BT-RF-OHC

Product
Catalogue

download

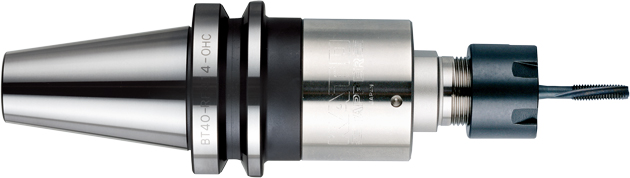

Model BT-RF-OHC
youtube

〈Features〉

◎ Radial floating tapper
◎ Only for CNC machines with a synchro function
◎ With an internal coolant supply through the center of the spindle (up to 5MPa)
    ※ Please use a tap with an oil hole.
● Tapping directly into drill holes after die-casting.
● Smooth compensation of eccentricity
● Also useful as a reaming holder

〈Functions〉

Radial Float
Coolant Trough

Combination Chart

Matching Collets
RF-414-OHCER20-GB
Accessories
Nut
※ Also selling
Options
Model ER collets
Spanner
※ Not included. Sold separately.

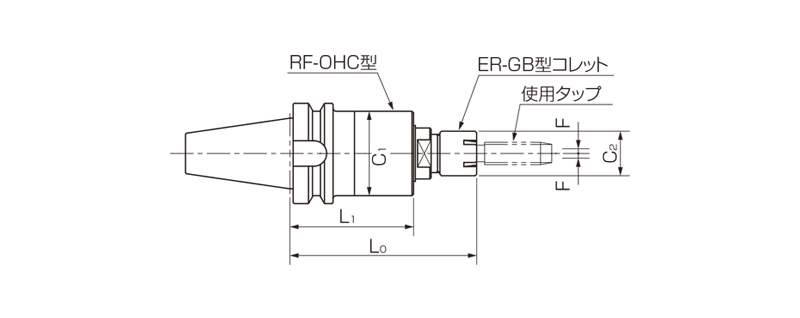

BT-RF-OHC
Model BT-RF-OHC
Model
L0
[mm]
L1
[mm]
C1
[mm]
C2
[mm]
F
[mm]
Capacity Spanner
Weight
[kg]
List Price
[JPY]
DXF
BT30-RF414-OHC
115 74 51 28 Radius 1.0 M 4~M14 ES20M 1.22 63,000 Download
BT40-RF414-OHC
120 76 1.97 75,000 Download
BT50-RF414-OHC
79 4.29 90,000 Download

※ Please contact us for the availability of models marked with ★.

※ F: Floating Radius
