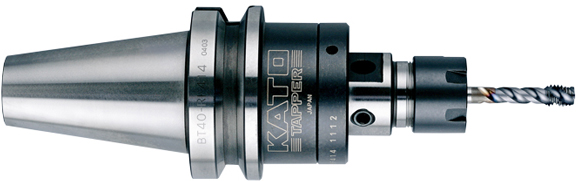

Tapper BT-RF

Product
Catalogue

download
Model BT-RF
youtube

〈Features〉

◎ Radial floating tapper
◎ Only for CNC machines with a synchro function
● Tapping directly into drill holes after die-casting.
● Smooth compensation of eccentricity
● Also useful as a reaming holder

〈Functions〉

Radial Float

Combination Chart

Matching Collets
RF414ER20
RF306ER11
RF103ER 8
Accessories
Nut
※ Also selling
Options
Model ER collets
Spanner
※ Not included. Sold separately.
BT-RF

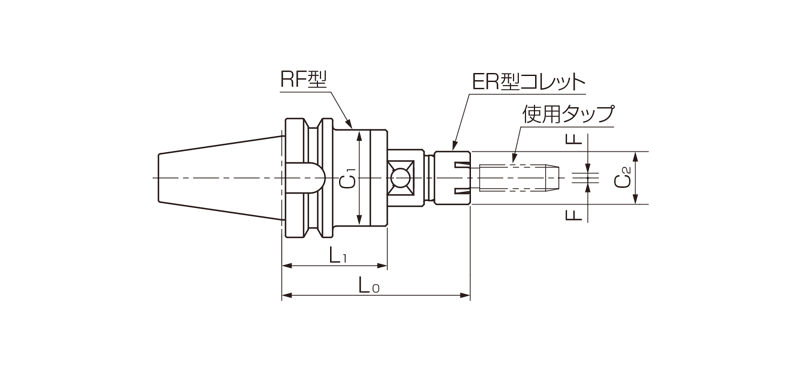

Model BT-RF
Model
L0
[mm]
L1
[mm]
C1
[mm]
C2
[mm]
F
[mm]
Capacity Spanner
Weight
[kg]
List Price
[JPY]
DXF
BT30-RF103
75 53 35 12 Radius 0.3 M 1~M 3 ES 8M 0.62 63,000 Download
  BT30-RF306
48 40 16 Radius 0.8 M 3~M 6 ES11M 0.60 Download
BT30-RF414
112 70 51 28 Radius 1.0 M 4~M14 ES20M 1.11 Download
BT40-RF306
90 63 40 16 Radius 0.8 M 3~M 6 ES11M 1.29 Download
BT40-RF414
100 58 51 28 Radius 1.0 M 4~M14 ES20M 1.80 Download
BT50-RF306
105 78 40 16 Radius 0.8 M 3~M 6 ES11M 3.65 75,000 Download
BT50-RF414
115 73 51 28 Radius 1.0 M 4~M14 ES20M 4.16 Download

※ Please contact us for the availability of models marked with ★.

※ F: Floating Radius
