Product Details - features, specs, options, etc.

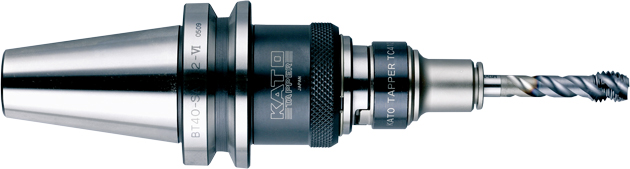

| Tapper | BT-SA-Ⅵ |
Product
|
|
|
|
〈Features〉
◎Designed for a wide range of machine tools
●Synchro error compensation on tension and compression
●Short design for limited space
〈Functions〉
Combination Chart
| Matching Collets | |
|---|---|
| SA1022-Ⅳ | TC1022-MO |
| SA 412-Ⅳ | TC 412-MO |
| Options |
|---|
| Model TC-MO collets ※ Not included. Sold separately. ※ Model TC collets also can be used. |
| BT-SA-Ⅵ |
|

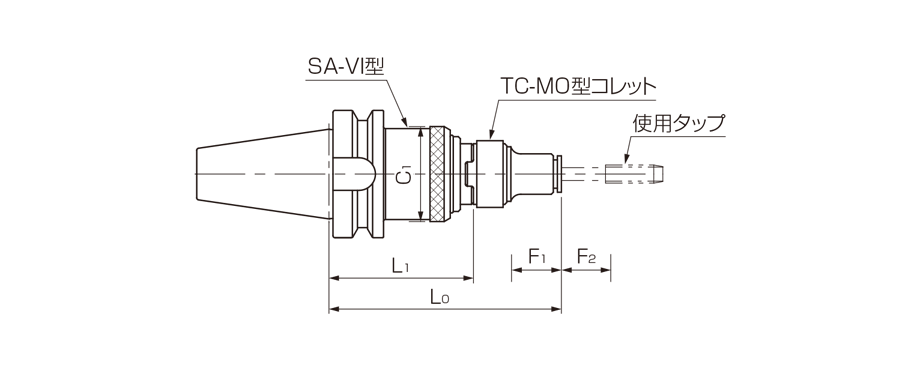

| Model |
L0 [mm] |
L1 [mm] |
C1 [mm] |
F1※ [mm] |
F2※ |
Capacity |
Weight [kg] |
List Price [JPY] |
DXF | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
110 | 66.5 | 47 | 6 | 8 | M 3～M 16 | 1.07 | 63,000 | Download | ||
|
115 | 71.5 | 1.30 | Download | |||||||
|
160 | 95.0 | 64 | 8 | 10 | M 8～M 27 | 1.80 | 77,000 | Download |
※ Please contact us for the availability of models marked with ★.
※ F1: Compression, F2: Tension
