Product Details - features, specs, options, etc.

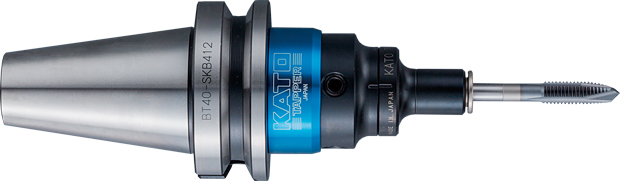

| Tapper | BT-SKB |
Product
|
|
|
|
〈Features〉
◎ Only for CNC machines with a synchro function
◎ Rigid design for high speed tapping
◎ With an internal coolant supply through the center of the spindle
※ Please use a tap with an oil hole.
◎ Short & compact design
● No tension or compression
〈Functions〉
Combination Chart
| Matching Collets | |
|---|---|
| SKB1022 | TCA1022 |
| SKB 412 | TCA 412 |
| Accessories |
|---|
| Clamping-screws ※ Also selling |
| Options |
| Model TCA collets ※ Not included. Sold separately. |

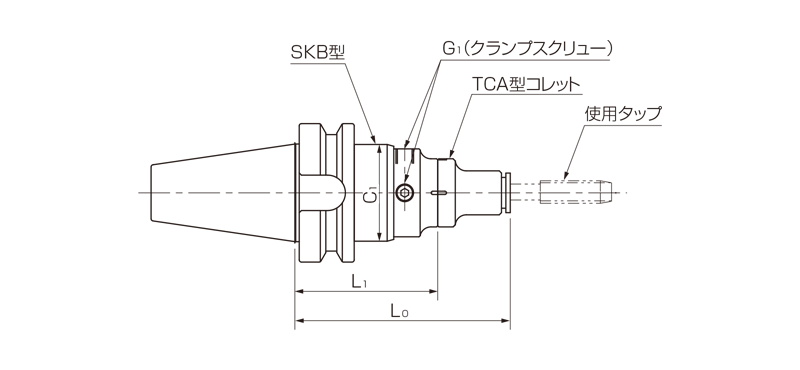

| BT-SKB |
|
| Model |
L0※ [mm] |
L1 [mm] |
C1 [mm] |
G1 [mm] |
Capacity |
Weight [kg] |
List Price [JPY] |
DXF |
|---|---|---|---|---|---|---|---|---|
| BT30-SKB 412 | 98 | 65 | 44 | M 8 P1.0 | M 2～M12 | 0.73 | 20,000 | Download |
| BT30-SKB1022 | 140 | 85 | 56 | M10 P1.0 | M10～M24 | 0.89 | 23,000 | Download |
| BT40-SKB 412 | 98 | 65 | 44 | M 8 P1.0 | M 2～M12 | 1.23 | 20,000 | Download |
| BT40-SKB1022 | 130 | 75 | 56 | M10 P1.0 | M10～M24 | 1.39 | 23,000 | Download |
| BT50-SKB 412 | 113 | 80 | 44 | M 8 P1.0 | M 2～M12 | 3.88 | Download | |
| BT50-SKB1022 | 145 | 90 | 56 | M10 P1.0 | M10～M24 | 4.09 | 23,800 | Download |
※ L0 should only be considered for Model TCA-S. When using other models, L0 should be calculated as L1+H1.
