Tapper DBT-HA-M

Product
Catalogue

download

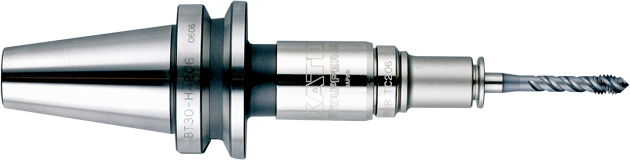

Model DBT-HA-M

〈Features〉

◎ Only for CNC machines with a synchro function
◎ Micro-floating Tapper for Synchro Tapping
◎ Short & compact design
◎ Quick-change tap collets
● DBT shanks can be combined with BBT or BT spindles of machine tools.

〈Functions〉

Micro-float

Combination Chart

Matching Collets
HA206-MTC206-M
Options
Model TC-M collets
※ Not included. Sold separately.
※ Model TC collets can't be used for synchro tapping because they're with a torque limiter.
DBT-HA-M
Model DBT-HA-M
Model
L0
[mm]
L1
[mm]
C1
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
DBT30-HA206-M
90 58 23 M 2~M 8 0.46 32,000 Download
DBT40-HA206-M
105 73 1.03 Download
DBT50-HA206-M
135 103 3.66 36,000 Download

※ Please contact us for the availability of models marked with ★.
