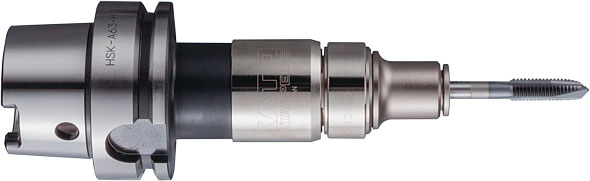

Tapper HSK-HA-M-OHC

Product
Catalogue

download
Model HSK-HA-M-OHC
youtube

〈Features〉

◎ Only for CNC machines with a synchro function
◎ Micro-floating Tapper for Synchro Tapping
◎ With an internal coolant supply through the center of the spindle
    ※ Please use a tap with an oil hole.
◎ Quick-change tap collets
● Coolant pressure is up to 2MPa with TC-MO collets.
● Coolant pressure is up to 5MPa with TC-MO-SB collets.
● Model HA-M-OHC tappers can function in mist specifications only when used with Model TC-MO-MIST collets.

〈Functions〉

Coolant Trough
Micro-float

Combination Chart

Matching Collets
HA 412-M-OHCTC 412-MO
HA1022-M-OHCTC1022-MO
HA2035-M-OHCTC2035-MO
Options
Model TC-MO collets
※ Not included. Sold separately.
※ Model TC collets can't be used for synchro tapping because they're with a torque limiter.

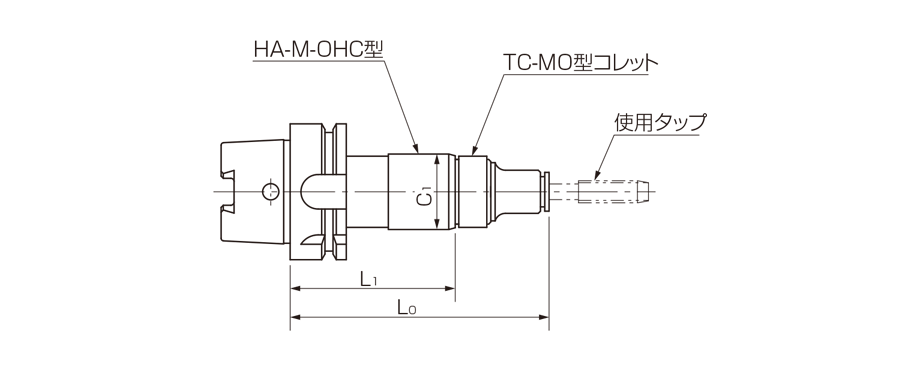

HSK-HA-M-OHC
Model HSK-HA-M-OHC
Model
L0
[mm]
L1
[mm]
C1
[mm]
Capacity
Weight
[kg]
List Price
[JPY]
DXF
  HSK-A 63-H-HA 412-M-OHC
120 76.5 35 M 3~M16 0.89 39,000 Download
  HSK-A 63-H-HA1022-M-OHC
165 100.0 50 M 8~M27 1.32 48,000 Download
HSK-A 63-H-HA2035-M-OHC
210 125.5 72 M18~M38 1.98 70,000 Download
  HSK-A100-H-HA 412-M-OHC
135 91.5 35 M 3~M16 2.80 68,000 Download
  HSK-A100-H-HA1022-M-OHC
165 100.0 50 M 8~M27 3.14 102,000 Download
HSK-A100-H-HA2035-M-OHC
210 125.0 72 M18~M38 4.33 127,000 Download

※ Please contact us for the availability of models marked with ★.

※ HSK shank with holes for manual clamping is standard.

※ The coolant pipe is tiltable.
