Tapper STT-RF

Product
Catalogue

download
Model STT-RF
youtube

〈Features〉

◎ Radial floating tapper
◎ Only for CNC machines with a synchro function
● Smooth compensation of eccentricity
● Also useful as a reaming holder

〈Functions〉

Radial Float

Combination Chart

Matching Collets
RF414ER20
RF306ER11
Accessories
Nut
※ Also selling
Options
Model ER collets
Spanner
※ Not included. Sold separately.

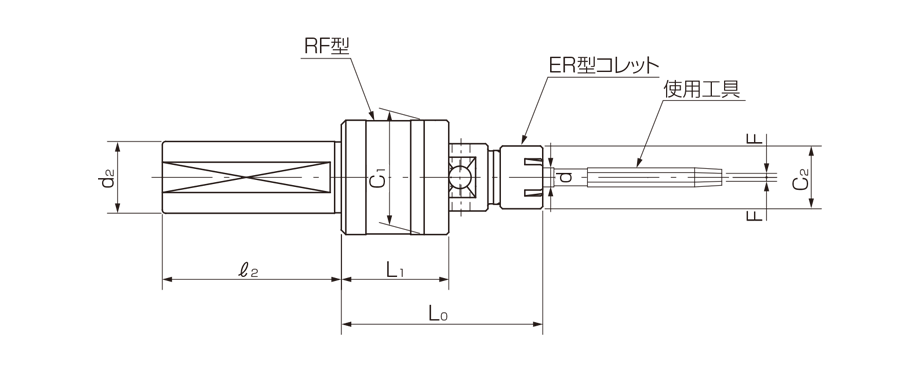

STT-RF
Model STT-RF
Model
L0
[mm]
L1
[mm]
C1
[mm]
C2
[mm]
F
[mm]
Shank[mm] Tool Shank Dia. Spanner
Weight
[kg]
List Price
[JPY]
DXF
2 d2
★STT20-RF306 67 40 40 16 Radius 0.8 60 20 φ 4~φ 6 ES11M 0.45 49,000 Download
★STT25-RF306 75 25 0.59 Download
★STT25-RF414 90  48 51 28 Radius 1.0 φ 5~φ11 ES20M 1.04 Download
★STT32-RF414 80 32 1.25 Download

※ Please contact us for the availability of models marked with ★.

※ F: Floating Radius
