Product Details - features, specs, options, etc.

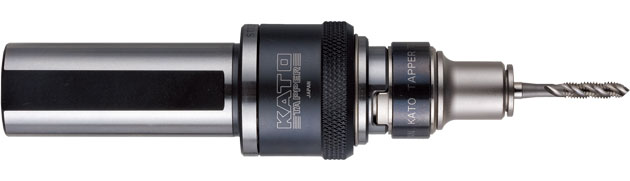

| Tapper | STT-SA-Ⅵ |
Product
|
|
|
|
〈Features〉
◎Designed for a wide range of machine tools
●Synchro error compensation on tension and compression
●Short design for limited space
〈Functions〉
Combination Chart
| Matching Collets | |
|---|---|
| SA1022-Ⅵ | TC1022-MO |
| SA412-Ⅵ | TC412-MO |
| Options |
|---|
| Model TC-MO collets ※ Not included. Sold separately. ※ Model TC collets also can be used. |
| STT-SA-Ⅵ |
|
| Model |
L0 [mm] |
L1 [mm] |
C1 [mm] |
F1※ [mm] |
F2※ [mm] |
シャンク[mm] | Capacity |
Weight [kg] |
List Price [JPY] |
DXF | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
l2 |
d2 |
||||||||||
| STT20-SA 412-Ⅵ | 93 | 49.5 | 47 | 6 | 8 | 60 | 20 | M 3～M16 | 0.51 | 49,000 | Download |
| STT25-SA 412-Ⅵ | 75 | 25 | 0.64 | Download | |||||||
| STT32-SA 412-Ⅵ | 80 | 32 | 0.86 | Download | |||||||
| STT32-SA 1022-Ⅵ | 140 | 75.0 | 64 | 8 | 10 | M 8～M27 | 1.47 | 55,000 | Download | ||
| STT40-SA 1022-Ⅵ | 40 | 1.73 | 64,000 | Download | |||||||
※ F1: Compression, F2: Tension
